Project Scope and Industrial IoT Vision

Cisco Asset Management (CAM) and Cisco Kinetic were engineered to provide enterprise customers with real-time operational visibility, predictive maintenance, and edge-to-cloud telemetry across hundreds of thousands of connected industrial sensors, logistics fleet vehicles, and smart facility controllers. The primary engineering challenge was bridging the physical edge and cloud analytics: enabling rapid developer onboarding and robust device communication over low-bandwidth, intermittent, and distributed edge networks.

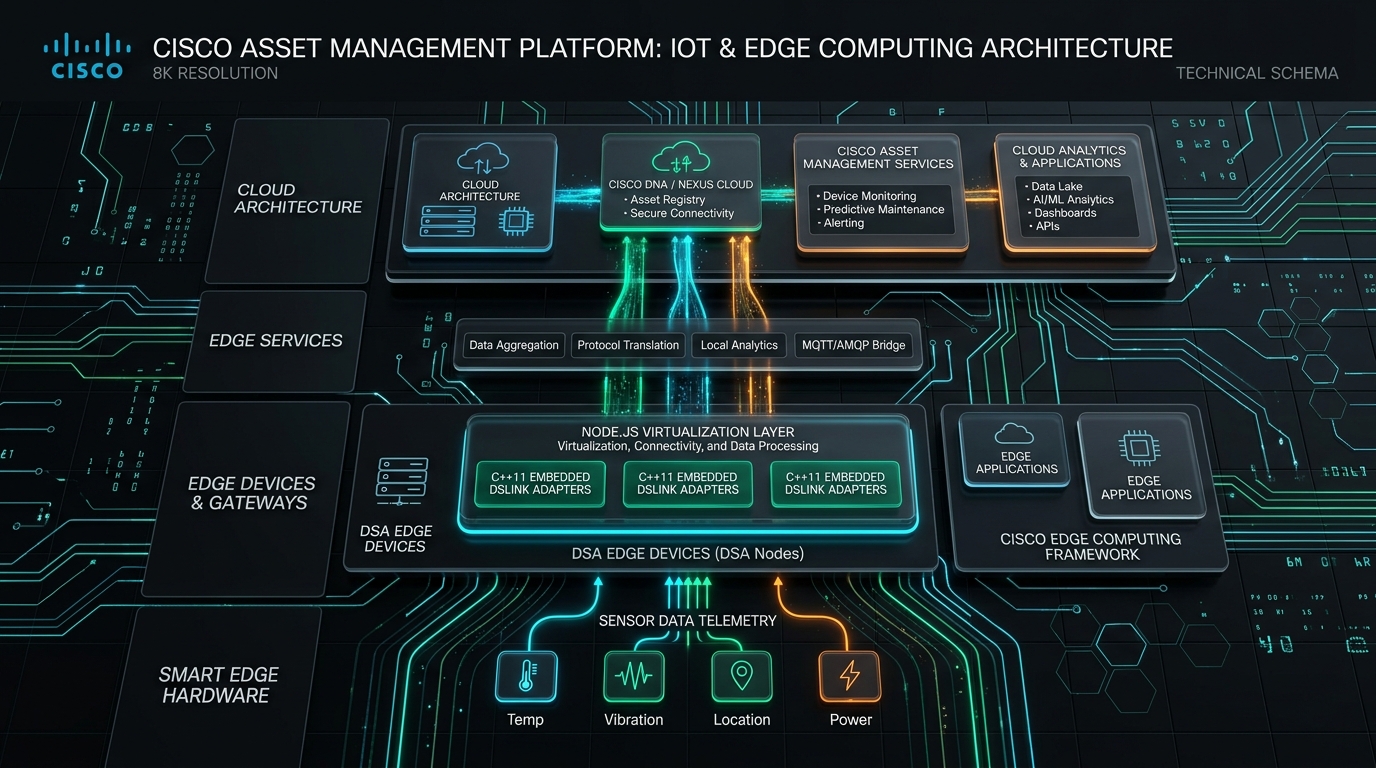

Architectural Overview: Edge-to-Cloud Distributed Services

The platform integrated three interconnected tiers to guarantee sub-second sensor ingest and offline resilience:

Protocol Normalization: Bridging Modbus, BACnet, MQTT and Z-Wave

In enterprise industrial facilities, IoT systems rarely enjoy homogeneous greenfield environments. A single smart campus or manufacturing plant typically operates dozens of competing, legacy protocols:

• Modbus RTU / TCP: The 1970s serial communications standard, relying on raw 16-bit register mappings without metadata or type safety.
• BACnet / IP: The building automation standard for HVAC and lighting systems, organizing data into complex device objects and priority arrays.
• Z-Wave & Zigbee: Sub-GHz wireless mesh networks used for smart power outlets, environmental sensors, and occupancy detectors.
• MQTT: Lightweight publish-subscribe messaging transport designed for high-latency, constrained network links.

The core responsibility of our C++11 DSLink adapters was mapping these wildly disparate data structures into a unified, hierarchical tree within Cisco's Distributed Services Architecture (DSA). A physical temperature sensor on a Modbus holding register (40001) and an environmental probe on a Z-Wave mesh node were both normalized into standard, typed DSA nodes (e.g. /downstream/FacilityA/Zone4/Temperature) complete with timestamped value updates and writable setpoints.

Edge Analytics vs. Cloud Aggregation: Bandwidth Optimization

Transmitting continuous high-frequency telemetry across cellular WAN networks (such as fleet logistics vehicles connected via 4G LTE) creates crippling bandwidth bills and saturates central cloud brokers. To mitigate this liability, our edge gateway layer performed local analytical preprocessing:

• Deadband Filtering: Instead of transmitting a stream of 100Hz vibration or temperature readings where the value remains unchanged, the edge adapter calculated deltas and published data only when readings breached a predefined percentage threshold (e.g. $Delta ge 1.5%$).
• Moving Average Smoothing & Peak Tracking: Calculating rolling averages, min, and max values locally inside edge memory buffers allowed gateways to transmit summarized telemetry packages every 60 seconds while immediately firing asynchronous alerts upon anomalous spikes.
• Data Reduction Impact: This edge-first filtering strategy reduced WAN cellular data volume by over 92%, saving enterprise clients millions in recurrent carrier costs while significantly reducing cloud database ingest load.

Core Engineering Innovations

1. Node.js Virtualization Layer for Rapid Plugin Emulation

The legacy CAM server platform executed hardware device plugins inside Mozilla's embedded Rhino JavaScript engine running on the JVM. While functional in production, developing plugins required deploying full Java application servers, making developer feedback loops slow, fragile, and difficult to automate in continuous integration environments.

To solve this bottleneck, I architected and implemented a high-speed Node.js-based virtualization runtime that completely mocked CAM's proprietary global namespaces, execution sandbox, and hardware I/O interfaces. This allowed internal engineers and third-party device manufacturers to:

• Execute and unit-test device plugins locally on developers' laptops in milliseconds without booting a JVM.
• Simulate network packet drops, corrupt telemetry streams, and hardware timeouts under controlled Mocha/Chai test harnesses.
• Accelerate plugin deployment cycles from days to minutes.

2. C++11 Embedded DSLink Adapters for DSA Edge Gateways

To enable low-power edge microcontrollers and industrial gateways to participate in Cisco's Distributed Services Architecture (DSA), I developed open-source, resource-constrained C++11 DSLink protocol adapters. Written with strict memory limits and zero heap allocations during the main event loop, these adapters:

• Normalized diverse industrial communication protocols (MQTT, Z-Wave, Modbus, BACnet) into standardized DSA JSON-RPC node streams.
• Implemented circular in-memory ring buffers to safely spool telemetry during WAN network disconnects, preventing sensor data loss across remote logistics vehicles.
• Executed on embedded ARM Linux gateways (such as Cisco 829 Industrial Routers and Raspberry Pi edge nodes) with minimal CPU and memory footprints.

3. In-House Hardware Prototyping & Reliability Lab

To validate real-world mesh networking behavior, I designed and maintained an active IoT experimentation lab equipped with Raspberry Pi 3 hardware, Aeotec ZStick USB transceivers, and dozens of smart power sensors and environmental meters. This lab continuously subjected the software stack to physical packet loss, power interruptions, and wireless mesh interference, guaranteeing rock-solid operational stability before deploying to enterprise industrial clients.

Sample Implementation: C++11 DSLink Value Publishing Pattern

Here is an illustrative pattern representing how sensor telemetry was normalized and dispatched via C++11 DSLink nodes:

#include <dsa/message.h>
#include <dsa/responder.h>
#include <chrono>
#include <string>

class TemperatureSensorNode : public dsa::NodeModel {
public:
    TemperatureSensorNode(const std::string& path) : dsa::NodeModel(path) {
        // Define metadata schema for the telemetry node
        set_type("number");
        set_writable(false);
    }

    void update_temperature(double celsius) {
        auto now = std::chrono::system_clock::now();
        std::string timestamp = dsa::format_iso8601(now);

        // Construct lightweight DSA value payload
        dsa::Var value(celsius);
        set_value(value, timestamp);

        // Broadcast change event to subscribed cloud brokers
        broadcast_value_update();
    }
};

Architectural Impact & Industry Lessons

The lessons derived from engineering Cisco's Industrial IoT platforms continue to guide modern distributed architectures:

1. Decouple Simulation from Hardware: Never bind developer velocity to physical hardware availability. Investing in high-fidelity virtualization harnesses pays immense dividends in software quality.
2. Edge-First Memory Discipline: When designing for the edge, assume constrained resources and zero garbage-collection latency spikes. C++11 RAII and deterministic resource lifetimes remain indispensable.
3. Anticipate Network Partitions: Distributed edge telemetry must treat network disconnection as a normal operational state, relying on deterministic store-and-forward spooling rather than fragile synchronous HTTP calls.
